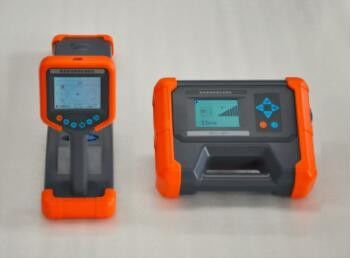

Rugged Case Cable Fault Tester Set , Depth Detecting Underground Cable Tracer

Rugged Case Cable Fault Tester Set , Depth Detecting Underground Cable Tracer

Rugged Case Cable Fault Tester Set , Depth Detecting Underground Cable Tracer
Rugged Case Cable Fault Tester Set , Depth Detecting Underground Cable Tracer Rugged Case Cable Fault Tester Set , Depth Detecting Underground Cable Tracer Rugged Case Cable Fault Tester Set , Depth Detecting Underground Cable Tracer Rugged Case Cable Fault Tester Set , Depth Detecting Underground Cable Tracer

Large Image :  Rugged Case Cable Fault Tester Set , Depth Detecting Underground Cable Tracer Get Best Price

Product Details:
Place of Origin: Wuhan ,China
Brand Name: Fanke High-voltage
Certification: ISO9001
Model Number: CTT1000
Payment & Shipping Terms:
Minimum Order Quantity: One Unit
Price: Negotiable
Packaging Details: Export Standard Wooden Case With Fumigation Free
Delivery Time: 10-15 Working Days
Payment Terms: L/C, T/T
Supply Ability: 10sets /month
Detailed Product Description
Product Name: Cable Tracing Tester Appilcation: Cable Locate Trace And Depth Detecting
Woking Freq.: 500Hz, 1kHz, 8kHz, 33kHz, 66kHz, 93kHz Max.Voltage: Max.200V (AC Peak Value)
Power Supply: Built-in Rechargeable Lithium Battery Charger: Input AC 100-240V, 50/60Hz, Output DC 8.4V, 2A.
Weight: Transmitter 2.2kg, Receiver 2.2kg Working Condition: -10--40℃. Humidity 5-90% RH, Altitude<4500m
High Light:

ac high voltage test set


underground cable detector

Underground Cable Identifier Tracing Tester , Cable Fault Test Set , Cable Tracing Tester


I. Application :


CTT1000 cable tracing tester is a high-performance underground metal pipeline detection system composed of signal transmitters and receivers. It can be used for path detection, pipeline survey and depth measurement of metal pipelines and underground cables. It can carry out uniqueness identification with a variety of selected accessories, as well as pipe insulation damage and the search for some types of cable faults


II. Feature

  1. Compass display: intuitively displays the pipeline location and left & right directions.

  2. Tracking true and false prompts: current direction measurement, tracking correct error prompts, eliminating line interference (some frequencies).

  3. Depth and current measurements, can display the signal strength historical curve.

  4. Fully digital high-precision sampling processing: stable and reliable, ultra-high sensitivity, strong anti-interference ability, can fully suppress the power frequency and harmonic interference of adjacent running cables and pipelines.

  5. Running cable detection: high-performance transmission clamps, maximum coupling output signal to the running cable.

  6. Cable/pipeline identification: Flexible clamps (optional) are easy to use and clearly give identification results; stethoscopes (optional) can be used when it is not convenient to use clamps.

  7. Ground fault finding: HV booster (optional) boosts the maximum output voltage to 1000V, uses the A frame (optional) to locate the ground insulation breakage points of the pipeline, no need to adjust zero. The arrow indicates the direction of the fault point.

  8. Multiple detection frequencies: active detection and passive detection.

  9. A variety of signal output of the transmitter: direct connection output, clamp coupling output, radiation induction.

  10. High power output of transmitter, multiple output adjustable, automatic impedance matching and protection.

  11. Built-in large capacity lithium ion battery group,

  12. Rugged case, light and portable.

III. Technical parameter



  1. Output modes: direct connection output, radiation induction, clamp coupling output(optional), fault locating HV booster(optional).

  2. Output frequency: 640Hz (compound frequency), 1280Hz (compound frequency), 10kHz,33kHz, 82kHz, 197kHz.

  3. Output power: Max.10W, 10 gears adjustable, automatic impedance matching.

  4. Direct connection output voltage: maximum 150Vpp.

  5. Overload and short circuit protection.

  6. Man-machine interface: 320 x240 dot matrix LCD display.

  7. Built-in battery: 4 section 18650 lithium ion battery, nominal 7.4V, 6.8Ah.


  1. Input mode: Built-in receiving coil, flexible clamp-on CTs(optional), Stethoscope(optional), A type fault detection device(optional).

  2. Receiving frequency:Active detection frequency for Pipes: 640Hz, 1280Hz, 10kHz, 33kHz, 82kHz, 197kHz.;Power frequency passive detection frequency: 50Hz/60Hz and 250Hz/300Hz (user configurable). RF passive detection frequency: the center frequency is 10kHz, 33kHz,82kHz respectively.

  3. Pipe detection mode: Wide peak method, narrow peak method, sound Valley method.

  4. Cable identification mode: flexible clamp-on CTs(optional) automatic identification and current measurement, stethoscope(optional) identification.

  5. 320*240 LCD display, shows signal amplitude, left/right direction, correct/false indication, history curve of signal strength, depth, current and result.

  6. Built-in battery, 2 section 18650 lithium ion battery, rated 7.4V, 3.4Ah.


  1. Dimension: Transmitter 280*220*90mm. Receiver 680*277*120mm.

  2. Weight: Transmitter 2.3kg. Receiver 2.0kg.

  3. Charger: AC100-240V input, 50/60Hz, output DC 8.4V,2A/3A.

  4. Working condition: Temperature -10-40℃, Humidity 5-90% RH, altitude<4500m.


IV. Standard accessories




Drawings and instructions



Transmitter output connection cable




Grounding drill




Grounding extension line





T standard, transmitter and receiver must be charged separately




V. Optional accessories (Specify when ordering)




Drawings and instructions


Connecting cable for receiver accessories.

Blue 6-core plug


Connecting cable for transmitter accessories.

Red 5-core plug


Clamp-on CT for transmitter



Flexible CT for receiver



A frame



Fault detection HV booster



Miniature stethoscope



Long stem stethoscope



Detection rod for long stem stethoscope
