|Usage:||On-load Tap-changer Characteristics Test||Ouput Current:||0.5A, 1A|
|Test Range:||1-40Ω||Sample Rate::||10~20 KHZ|
|Test Accuracy:||1-5Ω: ≤±10%. /5-40Ω :≤±5% Time Error：≤±1%||LCD Monitor:||240´128T， T6963C Controller|
distribution transformer testing equipment,
insulation resistance test set
Power Transformer On-load Tap-changer Characteristics Tester , Transformer Tap-changer Tester
I. Products Description and Application

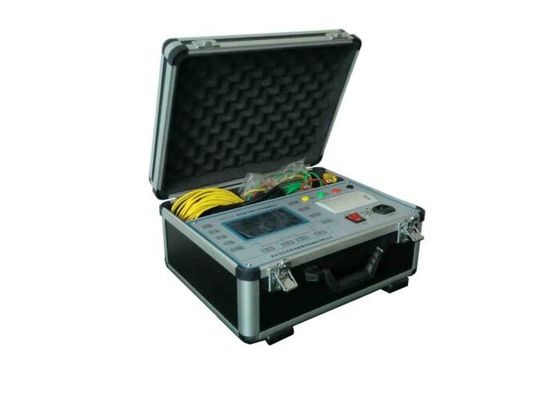

FKC-1A Tester is a comprehensive test equipment which is used to measure and analyze electrical properties index of on-load tap-changer of power transformer and special transformer in power system and has the function of analyzing, saving and printing test data. Controlled by computer, it can realize auto measuring of parameters such as transition time, transition waveform, transition resistance, and three-phase synchronism of on-load tap-changer through specially designed measuring circuit, so that user can not only measure via tap-changer lead, but also carry out measuring through direct wiring of three-phase sleeve of transformer and neutral point according to needs and site condition.
FKC-1A Tester is of vital importance in improving reliability of power system operation when promptly diagnosing latent fault of tap-changer in preventive test of power equipment and transformer overhaul, solving the problems of test method of on-load tap-changer of power transformer outdated and undedicated.
1. Three-way independent test power source, max output current being 0.5A 1A
2. Equipment sample rate: 10~20 KHZ
3. Max saving time of single waveform: 6.4 seconds
4. Measuring range of transition resistance:1-40Ω for Y/0 type transformer
1-20Ω for Y type transformer.
5. Measuring accuracy:1-5Ω,≤±10%.
5-40Ω,Δ≤±5% Time error:Δ≤±1%
6. Monitor:240´128T, T6963C controller
7. Processing part:high speed 8-bit micro-processor, data memory: 512K
8. High speed A/D converter, max sample rate being 400 KHZ
9. Power source :220V ±10% Power £200W
10. Dimension: 410mm´320mm ´200mm.
11. Weight :20kg
