Automatic Transformer Oil Testing Equipment / Insulating Oil Dielectric Strength Tester
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Usage: | Transformer Oil Dielectric Strength Testing | Output Voltage: | 0-80KV (100KV Can Be Ordered) |
|---|---|---|---|
| Test Range: | 0.5mΩ-100KΩ | Booster Capacity: | 1.5KVA |
| Boosting Speed: | 2.0~3.5 KV/s Or By Setting | Printer: | With Built-in Micro-printer |
| Feature: | With Brekdown Protection | Test Voltage Accuracy: | 1% |
| High Light: | transformer oil bdv test kit,insulating oil dielectric strength tester |
||
Automatic Insulation Oil BDV Tester , Transformer Oil Dielectric Strength Testing machine
I. Products Description and Application

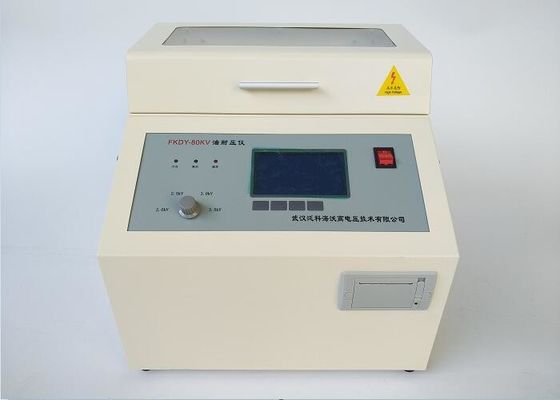

Model FKDY-80KV insulation oil dielectric strength tester , also named as insulation oil BDV tester ,is a highly accurate and all digital industrial instrument developed by our company's scientific research technicians according to the relevant IEC standard and the electric power industry standard. The machine is easy to operate and beautiful in shape. Because of the full automatic digital microcomputer control, the measurement accuracy is high, the anti-interference ability is strong, and the safety is safe and reliable. The test voltage can be upto max.80KV.
II. Features
1. The instrument is controlled by a large capacity single chip microcomputer, and the work is stable and reliable.
2. There is a wide range watchdog circuit in the instrument to eliminate the phenomenon of death.
3. A variety of operation options, the instrument with GB1986, GB2002 ,IEC156,ASTM D877,ASTM D1816 five national standard methods and custom operation, can adapt to different users of a variety of choices;
4. An instrument using special glass mold for one time, prevent the occurrence of oil spills and other interference phenomenon;
5. The unique high voltage terminal sampling design of the instrument allows test values to directly enter the A/D converter, avoiding the errors caused by analog circuits, and making the measurement results more accurate.
6. The instrument has the functions of over current, overvoltage, short circuit and so on, and has very strong anti-interference ability and good electromagnetic compatibility.
7. Portable structure, easy to move, easy to use both inside and outside.
III. Technical Parameters
| Technical content | Indicators |
| Output voltage | 0~80 kV(0-100KV can be ordered) |
| THD | <2% |
| Boosting speed | 2.0~3.5 kV/s(Δ = 0.5 kV/s) |
| Booster capacity | 1.5 kVA |
| Measurement accuracy | 1% |
| Supply voltage | AC 220 V ±10% |
| Power frequency | 50 Hz ±2% |
| Power | 200 w |
| Working temperature | 0~45℃ |
| Working humidity | <85 % RH |
| Width * height* depth | 410×390×375 (mm) |
| Net weight | ~ 29 kg |
IV. Optional Model
- FKDY -801 : 0~80KV , one oil cup test type;
- FKDY-1001: 0-100KV, one oil cup test type;
- FKDY -803 : 0~80KV , Three oil cups test type;
- FKDY -806 : 0~80KV , Six oil cups test type;
